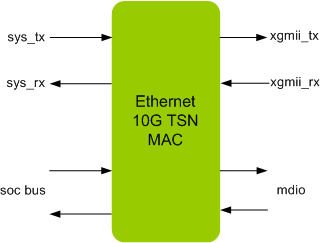

ETHERNET 10G TSN MAC IIP

Ethernet 10G TSN MAC core is a full-featured, easy-to-use, synthesizable design that supports various Ethernet TSN IEEE standards. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. Ethernet 10G TSN MAC IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses

ETHERNET 10G TSN MAC IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with IEEE Standard 802.3-2018 Specification - Clause 46
  • Supports Preemption as per IEEE Standard 802.1Qbu and IEEE Standard 802.3br Interspersing Express Traffic
  • Supports timing synchronization as per IEEE Standard 1588-2008(PTP) and IEEE Standard 802.1AS(GPTP)
  • Supports Traffic Scheduling - IEEE Standard 802.1Qbv(Enhancement for Scheduled Traffic) and IEEE Standard 802.1Qav (Credit Based Shaping)
  • Supports class based flow control and class based FIFO to store each class, total 8 class - IEEE Standard 802.1Q
  • Supports Full duplex mode of operation
  • Ultra low latency and compact implementation
  • Supports MDIO (Clause 22 and Clause 45) Interface
  • Supports Programmable Inter Packed Gap(IPG) and Preamble length
  • Supports XGMII (32 bit) interface
  • FCS generation supported
  • Supports VLAN and jumbo frames as an option
  • Independent TX and RX Maximum Transmission Unit (MTU)
  • TSN features can be enabled/disabled independently
  • Cut-through support
  • Configurable Transmit and Receive FIFOs
  • Comprehensive statistics gathering
  • Supports 32bit AXI4 Stream for Packet data
  • In house UNH compliance tested
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The Ethernet interface is available in Source and netlist products
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes
