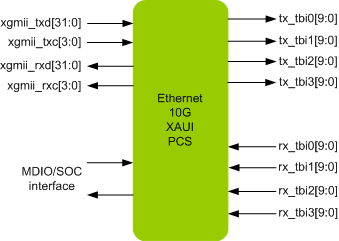

ETHERNET 10G XAUI PCS IIP

Ethernet 10G XAUI PCS core is compliant with IEEE Standard 802.3.2018 Ethernet specification. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. Ethernet 10G XAUI PCS IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses

ETHERNET 10G XAUI PCS IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports IEEE Standard 802.3.2018 Clause 48 for XAUI PCS
  • Supports 8b/10b encoding on each lane to generate code groups in transmit path
  • Supports 10b/8b decoding on each lane to convert received code groups to 32 XGMII data bits and 4 XGMII control bits
  • Supports synchronization of code groups on each lane to determine code group boundaries
  • Supports deskew of received code-groups from all lanes to an alignment pattern
  • Supports conversion of XGMII Idle control characters to (from) a randomized sequence of code-groups to enable serial lane synchronization, clock rate compensation and lane-to-lane alignment
  • Supports Loopback Functionality
  • Support link fault and error indications
  • Supports IEEE Standard 802.3az Energy Efficient Ethernet
  • Supports Configurable Management Interface (MDIO(Clause 45) / SOC Bus)
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The Ethernet interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
