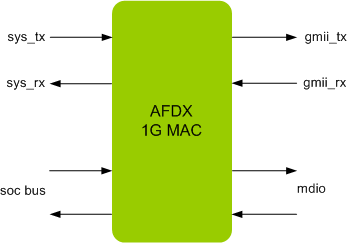

AFDX 1G MAC IIP

AFDX 1G MAC core is a full-featured, easy-to-use, synthesizable design that supports various Ethernet IEEE standards ,ARINC 664 and supports 10/100/1000M speeds. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. AFDX 1G MAC IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses

AFDX 1G MAC IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with ARINC 664 Specification
  • Compliant with IEEE Standard 802.3-2018 for 10/100/1000M Specification.
  • Supports Preemption as per IEEE Standard 802.1Qbu and IEEE Standard 802.3br Interspersing Express Traffic
  • Supports Traffic Scheduling - IEEE Standard 802.1Qbv and IEEE Standard 802.1Qav
  • Supports Frame Replication and elimination as per IEEE 802.1CB
  • Supports class based flow control and class based FIFO to store each class, total 8 class - IEEE Standard 802.1Q
  • Supports for Full duplex Ethernet Link
  • Supports Virtual Link Traffic Shaping (BAG – Bandwidth Allocation Gap)
  • Ultra low latency and compact implementation
  • Supports for MDIO (Clause 22 and Clause 45) Interface
  • Supports for Programmable Inter Packed Gap(IPG) and Preamble length
  • Support GMII/RGMII/MII interface
  • FCS generation supported
  • Independent TX and RX Maximum Transmission Unit (MTU)
  • TSN features can be enabled/disabled independently
  • Cut-through support
  • Configurable Transmit and Receive FIFOs
  • Provides detailed statistics as per the specification including VL (Virtual Link) message count
  • Supports 32bit AXI4 Stream for Packet data
  • Optional DMA support for both transmit and receive side
  • In house UNH compliance tested
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The AFDX interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
