IEC7816 Master IIP

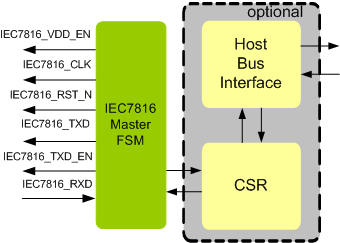

IEC7816 Master interface provides full support for the IEC7816 (SmartCard) synchronous serial interface, compatible with ISO/IEC 7816-3 specification. Through its IEC7816 compatibility, it provides a simple interface to a wide range of low-cost devices. IEC7816 Master IIP is proven in FPGA environment. The host interface of the IEC7816 Master can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

IEC7816 Master IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with ISO/IEC 7816-3 Specification.
  • Full IEC7816-3 Master functionality.
  • Supports all functions for complete smart card sessions,including
    • Card activation and deactivation
    • Cold/warm reset
    • Answer to Reset (ATR) response reception
    • Data transfers to and from the card
  • Supports adjustable clock rate and bit (baud) rate.
  • Supports configurable automatic byte repetition.
  • Supports commonly used communication protocols
    • T = 0 for asynchronous half-duplex character transmission, and
    • T = 1 for asynchronous half-duplex block transmission
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The IEC7816 Master interface is available in Source and netlist products.
    • The Source product is delivered in verilog.If needed, VHDL and SystemC can also be provided
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
