INTC IIP

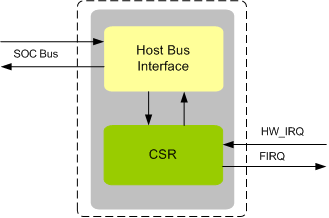

Interrupt Controller interface provides full support for programmable edge triggered (rising, falling) or sensitive, compatible with Interrupt Controller Specification. Through its INTC compatibility, it provides a simple interface to a wide range of low-cost devices. INTC IIP is proven in FPGA environment. The host interface of the INTC can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

INTC IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with Interrupt controller specification
  • Programmable edge triggered (rising, falling) or sensitive (high, low) trigger source
  • Configurable number of interrupt sources (up to 31 IRQ,or sensitive (high, low) trigger source one fast IRQ)
  • Selectable source for fast IRQ
  • Supports up to 31 pending interrupt while servicing a single interrupt
  • Eight levels of hardware priority
  • Selectable hardware or software interrupt source
  • All interrupt sources are maskable
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The INTC interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
