LPC Device IIP

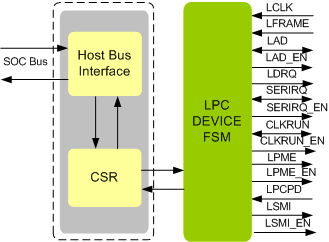

LPC Device/Peripherals interface is full-featured, easy-to-use, synthesizable design, compatible with Standard LPC specification. Through its LPC compatibility, it provides a simple interface to a wide range of low-cost devices. LPC Device IIP is proven in FPGA environment.The host interface of the LPC Peripherals/Device can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite,AMBA AXI,AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink,Wishbone or Custom protocol.

LPC Device IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with version 1.1 LPC Specification.
  • Full LPC Device/Peripheral functionality
  • Supports the following operations:
    • Memory read and write
    • I/O read and write
    • DMA read and write
    • Bus Master memory read and write
    • Bus Master I/O read and write
    • Firmware memory read and write
    • TPM read and write
  • Supports all transfer sizes
  • Supports 128 Bytes for Firmware read
  • Support a variable number of wait-states
  • Supports Sync timeout detection and abort transfer
  • Supports Sync field based error detection and reporting
  • Supports wake-up and other power state transitions
  • Peripheral is capable of responding to all types of LPC transactions
  • Supports Abort Mechanism as per specification
  • Supports soft reset
  • Supports Reset policy
  • Supports LPME#, LPCPD#, CLKRUN# Power management signals
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IIP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The LPC Device interface is available in Source and netlist products.
    • The Source product is delivered in verilog.If needed, VHDL and SystemC can also be provided
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and linux driver package
    • Documentation contains User's Guide and Release notes.
