SLVS-EC RECEIVER IIP

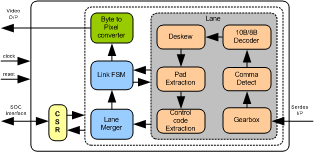

SLVS-EC Receiver core is compliant with standard SLVS_EC specification as 2.0. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. SLVS-EC Receiver IIP is proven in FPGA environment. The host interface of the SLVS-EC can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.

SLVS-EC RECEIVER IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with SLVS-EC specification 2.0.
  • Full SLVS-EC receive functionality.
  • Supports the following system topologies between CIS and DSP
    • Basic Topology
    • Multiple I/F Topology
    • Multiple CIS Topology
  • Supports the following frame synchronization schemes.
    • DSP Master with shared clock
    • DSP Master without shared clock
  • Supports the following Baud Grades,
    • Baud Grade 1 with Baud Rates of 1152 to 1250 Mbps
    • Baud Grade 2 with Baud Rates of 2304 to 2500 Mbps
    • Baud Grade 3 with Baud Rates of 4608 to 5000 Mbps
  • Supports multi lanes upto 8 lanes(1,2,4,6,8 lanes).
  • Supports lane deskew.
  • Supports the following color formats.
    • RAW 8
    • RAW 10
    • RAW 12
    • RAW 14
    • RAW 16
  • Supports Embedded data transfer.
  • Supports Multiple stream transfer.
  • Supports LINK Protocol Management.
  • Supports PHY Protocol Management.
  • Supports 10B 8B Decoding.
  • Supports Error Detection Code and Cyclic Redundancy Check(CRC).
  • Detects and reports the following errors,
    • Invalid control character
    • Disparity error
    • Invalid 10bit code
    • Sync errors
    • Truncated Packet
    • Illegal Standby /Config
    • Insufficient Blanking
    • Delayed Line End
    • Line Boundary Error
    • Bandwidth Misarrangement
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The SLVS-EC Receiver interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
