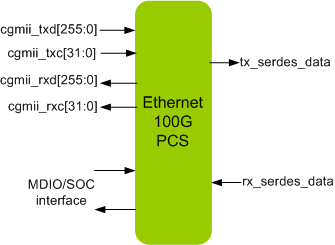

ETHERNET 100G PCS IIP

Ethernet 100G PCS core is compliant with IEEE Standard 802.3.2018 Ethernet specification. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. Ethernet 100G PCS IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses

ETHERNET 100G PCS IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports IEEE Standard 802.3.2018 Clause 82
  • Supports 100G BASE R, BASE KR4/CR4
  • Supports 64b/66b encoding and decoding for transmit and receive path
  • Supports data scrambling on the transmit path and descrambling on the receive path
  • Supports Lane Distribution across 20 Lanes for 100Gbps BASE R and 4 lanes for BASE KR4/CR4
  • Supports Block synchronization
  • Supports gearbox for various data widths
  • Supports Alignment Marker insertion and removal
  • Supports PCS Lane Deskew and Lane Re-ordering
  • Supports BIP-8 insertion on the transmit path and checking on the receive path per lane
  • Supports Bit Error Rate monitoring
  • Supports receiver Link fault status detection
  • Supports Loopback functionality
  • Supports IEEE 802.3az Energy Efficient Ethernet
  • Supports Configurable Management Interface (MDIO(Clause 45) / SOC Bus)
  • Supports PMA interface for the following widths,
    • 32
    • 40
  • Support RS FEC as per clause 91 of IEEE Standard 802.3.2018
  • Optional Support for Base-R FEC as per clause 74 of IEEE Standard 802.3.2018
  • Optional support for Test pattern generation and error checkers
  • Optional support for auto negotiation for backplane Ethernet as per clause 73 of IEEE Standard 802.3.2018
  • Programmable PRBS31 and PRBS9 test pattern generation and checker
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The Ethernet interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
