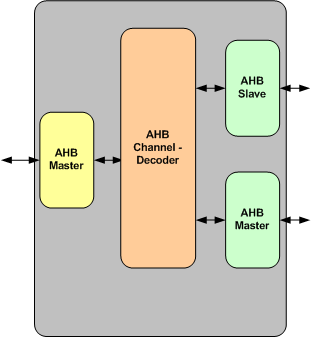

AHB Decoder IIP

AHB Decoder IP core is compliant with AMBA AHB Specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices.AHB Decoder IIP is proven in FPGA environment.

AHB Decoder IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with AMBA AHB specification
  • Supports configurable number of AHB Master
  • Supports configurable number of AHB Slave
  • types, burst transfers and response types
  • Support for all the transfer sizes
  • Supports configurable Endianness of the Data bus
  • Supports feature of decoder to decode address from master and to map to the respective slave on the AHB Channel
  • Supports multiplexor to select the read data slaves and to route to respective AHB Master on the bus
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The AHB Decoder is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
