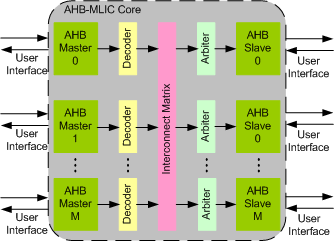

AHB Multilayer Interconnect IIP

AHB Multilayer Interconnect IP core is compliant with AMBA AHB Specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. AHB Multilayer Interconnect IIP is proven in FPGA and ASIC environment.

AHB Multilayer Interconnect IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with AMBA AHB specification
  • Supports configurable number of AHB Master
  • Supports configurable number of AHB Slave
  • Supports standardized user interface signals for easy integration with any IP
  • Supports control logic to map User Interface signals with the AHB signals
  • Supports configurable Data and Address Bus
  • Supports user-defined Slave to Master mapping
  • Supports user-defined Slave address per Master
  • Round-robin or priority based arbitration selectable per Slave
  • Higher throughput and less arbitration overhead between Masters as arbitration is done at each Slave port
  • Supports all protocol transfer types, burst transfers and response types
  • Support for all the transfer sizes
  • Supports configurable Endianness of the Data bus
  • Supports locked transfers
  • Supports early burst termination on receiving Error response from Slave
  • Supports two cycle error response in Slave
  • Supports response generation with wait states in Slave
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The AHB MLIC interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
