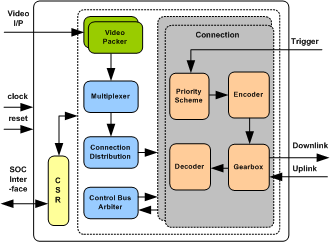

CXP DEVICE IIP

CXP Device core is compliant with standard CXP specification as 1.1/1.1.1/2.0. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. CXP Device IIP is proven in FPGA environment. The host interface of the CXP can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.

CXP DEVICE IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with CXP Specification 1.1/1.1.1/2.0.
  • Full CXP Device functionality.
  • Supports upto 4 connections.
  • Supports following Channels,
    • Stream Channel
    • I/O Channel
    • Control Channel
  • Supports 8,10,12,14,16 bit depth.
  • Supports following bit rates for high speed down connection.
    • 1.25 Gbps
    • 2.50 Gbps
    • 3.125 Gbps
    • 5.00 Gbps
    • 6.25 Gbps
    • 10 Gbps
    • 12.5 Gbps
  • Supports following bit rates for low speed up connection.
    • 20.83 Mbps
    • 41.66 Mbps
  • Supports 8B/10B Encoding and 10B/8B Decoding.
  • Supports packing of all the video formats supported by the CXP v2.0 specification.
  • Supports the following color formats.
    • Raw
    • Mono
    • Planar_1 to Planar_15
    • BayerGR
    • BayerRG
    • BayerGB
    • BayerBG
    • RGB
    • RGBA
    • YUV_411, YUV_422, YUV_444
    • YCbCr_601_411,YCbCr_601_422,YCbCr_601_444
    • YCbCr_709_411,YCbCr_709_422,YCbCr_709_444
  • Supports Bootstrap register set as per CXP v2.0 specification.
  • Supports packet multiplexing from different streams.
  • Supports connection test facilities to test the quality of the connection.
  • Supports Unified Time Stamping as per CXP version 2.0 specification.
  • Supports link Sharing as per CXP version 2.0 specification.
  • Supports backward compatibility for version 1.1.1 specification.
    • High speed up connection with maximum bit rate of 6.25 Gbps
    • Low speed up connection with 20.83 Mbps bit rate
    • HsUpConnection bootstrap register is used to indicate the HS up connection support.
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The CXP Device interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
