DDR Controller IIP

DDR interface provides full support for the DDR interface, compatible with JESD79F specification and DFI-version 2.0 or higher Specification Compliant. Through its DDR compatibility, it provides a simple interface to a wide range of low-cost devices. DDR IIP is proven in FPGA environment. The host interface of the DDR can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.

DDR Controller IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation

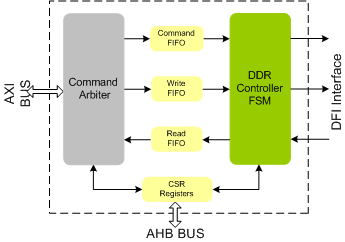

  • Supports DDR protocol standard JESD79F Specification.
  • Compliant with DFI-version 2.0 or higher Specification.
  • Supports all the DDR commands as per the specs.
  • Supports up to 16 AXI ports with data width upto 512 bits.
  • Supports controllable outstanding transactions for AXI write and read channels
  • Supports in port arbitration and multi port arbitration.
  • Supports user programmable page policy.
    • Closed page policy
    • Open page policy
  • Supports Error Checking and correction (ECC).
  • Supports retry on ECC error, with retry limit user controllable.
  • Supports high clock speeds in ASIC and FPGA.
  • Supports low latency for write and read path.
  • Supports reordering of transactions for higher performance.
  • Supports all device speeds as per specification.
  • Supports Programmable CAS latency.
  • Supports Programmable burst lengths: 2,4 and 8.
  • Supports Write data Mask.
  • Supports the following devices.
    • X4
    • X8
    • X16
  • Supports the following memory densities.
    • 64MB
    • 128MB
    • 256MB
    • 512MB
    • 1GB
  • Supports the following burst types.
    • Sequential
    • Interleave
  • Supports burst order.
  • Supports for All Mode registers programming.
  • Supports for Extended Mode registers programming.
  • Supports Auto refresh & self refresh modes.
  • Supports Auto precharge option for each burst access.
  • Supports Power Down features.
  • Supports input clock stop and frequency change.
  • Supports DLL operation.
  • Fully synthesizable
  • Static synchronous design.
  • Positive edge clocking and no internal tri-states.
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The DDR interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
