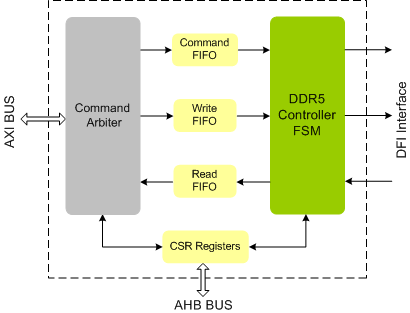

DDR5 Controller IIP

DDR5 is full-featured, easy-to-use, synthesizable design, compatible with DDR5 JESD79-5 and JESD79-5 Rev1.40 (Draft) specification and DFI-version 5.0 Compliant. Through its DDR5 compatibility,it provides a simple interface to a wide range of low-cost devices. DDR5 IIP is proven in FPGA environment.The host interface of the DDR5 can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.

DDR5 Controller IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports DDR5 protocol standard JESD79-5 and JESD79-5 Rev1.40 (Draft) Specification.
  • Compliant with DFI version 5.0 Specification.
  • Supports up to 16 AXI ports with data width upto 512 bits.
  • Supports controllable outstanding transactions for AXI write and read channels
  • Supports in port arbitration and multi port arbitration.
  • Supports user programmable page policy.
    • Closed page policy
    • Open page policy
  • Supports Error Checking and correction (ECC).
  • Supports retry on ECC error, with retry limit user controllable.
  • Supports high clock speeds in ASIC and FPGA.
  • Supports low latency for write and read path.
  • Supports reordering of transactions for higher performance.
  • Supports up to 64GB device density.
  • Supports the following device types:
    • X4
    • X8
    • X16
  • Supports all speed grades as per specification.
  • Supports for Mode Registers programming.
  • Supports for Sequential burst type.
  • Supports Programmable burst lengths of 8,16 and 32.
  • Supports for Programmable Write and Read latency.
  • Supports Multiple Outstanding transaction.
  • Supports In-port Arbitration using QoS.
  • Supports Write Pattern Comand.
  • Supports Auto precharge for Write, Read and Write pattern command.
  • Supports for Write Data Mask.
  • Supports Refresh modes and Global refresh counter.
  • Supports Refresh management all command.
  • Supports Refresh management same bank command.
  • Supports 2N mode.
  • Supports CRC and ECC for Write and Read Operations.
  • Supports for Self Refresh and Power Down operation.
  • Supports for Precharge Command modes.
  • Supports for Maximum Power Saving Mode (MPSM).
  • Supports 1:4, 1:2 and 1:1 Controller to DFI PHY frequency ratio.
  • Supports Programmable clock frequency operation.
  • Fully synthesizable.
  • Static synchronous design.
  • Positive edge clocking and no internal tri-states.
  • Scan test ready.
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices.
  • Build in self test to test all locations in memory to identify damaged locations
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The DDR5 interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
