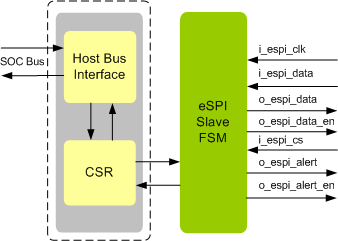

eSPI Slave IIP

eSPI Slave is full-featured, easy-to-use, synthesizable design, compatible with standard protocol of standard eSPI specification.Through its eSPI compatibility,it provides a simple interface to a wide range of low-cost devices.eSPI Slave IIP is proven in FPGA environment.The host interface of the eSPI Slave can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite,AMBA AXI,AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink,Wishbone or Custom protocol.

eSPI Slave IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with eSPI base specification as defined in Enhanced Serial Peripheral Interface (eSPI) Specification rev.1.0
  • Supports Single, Dual and Quad modes
  • Supports below transaction phases
    • Command Phase
    • Turn-Around Phase
    • Response Phase
  • Supports Slave triggered transaction
  • Supports Power management Event
  • Supports Interrupts and Alert
  • Supports TX and RX operations as per specs
  • Supports below multiple channels
    • Peripheral Channel
    • Virtual Wires Channel
    • OOB Message (Tunneled SMBus) Channel
    • Run-time Flash Access Channel
  • Various kind of errors detection and handling
  • Supports CRC checking
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The eSPI Slave interface is available in Source and netlist products
    • The Source product is delivered in verilog.If needed, VHDL and SystemC can also be provided
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and linux driver package
    • Documentation contains User's Guide and Release notes
