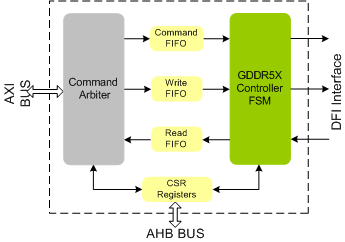

GDDR5X Controller IIP

GDDR5X interface provides full support for the GDDR5X interface, compatible with standard JESD232 and JESD232A specification and DFI-version 4.0 or 5.0 Specification Compliant. Through its GDDR5X compatibility, it provides a simple interface to a wide range of low-cost devices. GDDR5X IIP is proven in FPGA environment. The host interface of the GDDR5X can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.

GDDR5X Controller IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports GDDR5X protocol standard JESD232 and JESD232A.
  • Compliant with DFI-version 4.0 or 5.0 Specification.
  • Supports all the GDDR5X commands as per the specs.
  • Supports up to 16 AXI ports with data width upto 512 bits.
  • Supports controllable outstanding transactions for AXI write and read channels
  • Supports in port arbitration and multi port arbitration.
  • Supports user programmable page policy.
    • Closed page policy
    • Open page policy
  • Supports Error Checking and correction (ECC).
  • Supports retry on ECC error, with retry limit user controllable.
  • Supports high clock speeds in ASIC and FPGA.
  • Supports low latency for write and read path.
  • Supports reordering of transactions for higher performance.
  • Supports programmable clock frequency of operation.
  • Supports for all types of timing and protocol violation detection.
  • Supports for following Package Pin out and Addressing,
    • 4GB
    • 6GB
    • 8GB
    • 12GB
    • 16GB
  • Supports the following device modes,
    • X16
    • X32
  • Supports for All Mode registers programming.
  • Supports for Bank group features.
  • Supports for Single ended interface for command, address and data.
  • Supports for QDR and DDR operating mode.
  • Supports for Programmable read latency and write latency.
  • Supports for Write data mask function via address bus.
  • Supports for Data bus inversion (DBI) & address bus inversion (ABI).
  • Supports for Input/output PLL/DLL.
  • Supports for Address training.
  • Supports for cyclic redundancy check (CRC-8).
  • Supports for Low Power modes.
  • Supports for Auto & self refresh modes.
  • Supports for Auto precharge option for each burst access.
  • Supports for On-die termination (ODT) for all high-speed inputs.
  • Supports Mirror function with MF pin.
  • Supports IEEE 1149.1 compliant boundary scan.
  • Supports for input clock stop and frequency change.
  • Fully synthesizable
  • Static synchronous design.
  • Positive edge clocking and no internal tri-states.
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The GDDR5X interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
