HDMI SOURCE IIP

The HDMI Source IIP core supports the HDMI 1.4b/2.0b/2.1 specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. HDMI Source IIP is proven in FPGA environment. The host interface of the HDMI can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.

HDMI SOURCE IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation

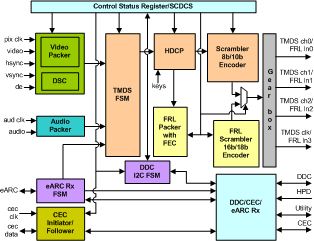

  • Compliant with HDMI specification 1.4b/2.0b/2.1.
  • Full HDMI Source functionality.
  • Compatible with DVI and Dual-Link DVI Standards.
  • Supports 8, 10, 12 and 16 bit pixel inputs.
  • Supports RGB, YCbCr444, YCbCr422 and YCbCr420 Colorimetric Formats.
  • Supports 3D video formats and video resolutions of 4Kx2K, 5Kx2K, 8Kx4K, 10Kx4K.
  • Compressed Video Transport VESA DSC 1.2a.
  • Supports 340 Mcsc to 600 Mcsc TMDS Character Rate.
  • Supports FRL Lane link rates of 3 Gbps, 6 Gbps, 8 Gbps, 10 Gbps, and 12 Gbps.
  • Supports Variable Refresh Rate (VRR) and Fast Vactive (FVA).
  • Supports Info frames and auxiliary data formats in HDMI specification1.4b/2.0b/2.1
  • Supports 2, 8 and 32 channel audio format.
  • Supports 8b10b encoding on TMDS channel.
  • Supports Fixed Rate Link transmission with 16b18b encoding.
  • Supports Forward Error Correction (FEC).
  • Supports High-bandwidth Digital Content Protection System (HDCP) 1.4/2.2/2.3.
  • Supports display data channel (DDC).
  • Supports Consumer Electronics Control (CEC1.4/2.0).
  • Supports 10bit, 20bit, 40bit, and 80bit parallel interfaces
  • Supports Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC) Receiver.
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The HDMI Source interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
