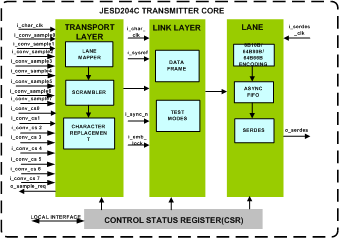

JESD204C Transmitter IIP

JESD204C interface provides full support for the JESD204C synchronous serial interface,compatible with JESD204C version specification. Through its compatibility,itprovides a simple interface to a wide range of low-cost devices. JESD204C Transmitter IIP is proven in FPGA environment. The host interface of the JESD204C can besimple interface or can be AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or Custom protocol.

JESD204C Transmitter IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with JESD204 specification JESD204A, JESD204B.01 and JESD204C.
  • Full JESD204C transmit functionality.
  • Supports data rate upto 32 Gbps.
  • Supports programmable clock frequency up to 32 GHz.
  • Supports up to Subclass 0, 1, 2.
  • Supports up to Version A, B and C.
  • Supports 1 to 8 lanes.
  • Supports 1 to 8 converters per transmitter.
  • Supports frame sizes of 1,2,4,8 and 16 octets per frame.
  • Supports HD-mode.
  • Supports 1 to 32 bit data width per converter.
  • Supports CF = 0 and 1 control words per frame clock period per link.
  • Supports 0 to 3 control bits per sample.
  • Supports 1 to 8 samples per converter.
  • Supports 1 to 32 frames per multiframe.
  • Supports 4, 8, 12, 16, 20, 24, 28 and 32 bits per sample.
  • Supports 0 to 15 bank ID – extension to DID.
  • Supports 0 to 255 device identification number.
  • Supports 0 to 7 lane identification number.
  • Supports 8b/10b encoding.
  • Supports 64b/66b encoding.
  • Supports 64b/80b encoding.
  • Supports Forward Error Correction (FEC) and cyclic redundancy checks (CRC).
  • Supports single block, Multi block and extended multi block.
  • Supports different Serdes interfaces 10,20,40,60 bits and custom bits per lane.
  • Continuous sequence of a scrambled jitter pattern (JSPAT) and modified random pattern (modified RPAT).
  • Continuous sequence of either /D21.5/ or /K28.5/ characters for code group synchronization.
  • Repeated transmission of a lane alignment sequence, preceded by a code group synchronization sequence.
  • Scrambler can be enabled or disabled.
  • MCDA-ML (Multiple-Converter Device Alignment, Multiple-Lanes) device supported.
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs,license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The JESD204C Transmitter interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
