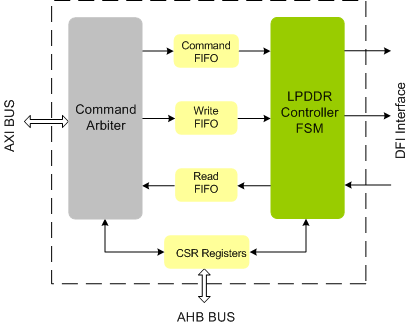

LPDDR Controller IIP

LPDDR is full-featured, easy-to-use, synthesizable design, compatible with JESD209A-1 and JESD209B specification and DFI-version 2.0 or higher specification Compliant. Through its LPDDR compatibility, it provides a simple interface to a wide range of low-cost devices. LPDDR IIP is proven in FPGA environment. The host interface of the LPDDR can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.

LPDDR Controller IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports LPDDR protocol standard and JESD209A-1 and JESD209B Specification
  • Compliant with DFI version 2.0 or higher Specification.
  • Supports up to 16 AXI ports with data width upto 512 bits.
  • Supports controllable outstanding transcations for AXI write and read channels
  • Supports in port arbitration and multi port arbitration.
  • Supports user programmable page policy.
    • Closed page policy
    • Open page policy
  • Supports Error Checking and correction (ECC).
  • Supports retry on ECC error, with retry limit user controllable.
  • Supports high clock speeds in ASIC and FPGA.
  • Supports low latency for write and read path.
  • Supports reordering of transcations for higher performance.
  • Supports up to 2GB device density
  • Supports X32 and X16 devices
  • Supports all speed grades as per specification
  • Supports programmable CAS latency
  • Supports programmable burst length: 2, 4, 8 and 16
  • Supports Mode registers/Control programming
  • Supports extended mode register programming
  • Supports burst type: Sequential and Interleave
  • Supports burst order
  • Supports write data mask
  • Supports power down features
  • Supports deep power down features
  • Supports auto precharge option for each burst access
  • Supports auto refresh and self refresh modes
  • Supports Multiple Outstanding transaction
  • Supports In-port Arbitration using QoS
  • Supports 2:1 and 4:1 Clock Ratio Modes
  • Supports CRC and ECC for Write and Read Operations
  • Supports 1:4 Controller to DFI PHY frequency ratio
  • Supports Programmable clock frequency operation
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The LPDDR interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
