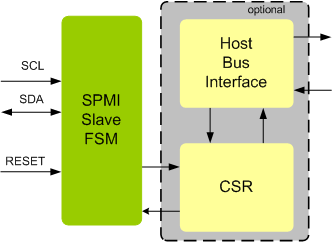

MIPI SPMI Slave IIP

MIPI SPMI Slave interface provides full support for the two-wire MIPI SPMI synchronous serial interface, compatible with SPMI specification. Through its SPMI compatibility, it provides a simple interface to a wide range of low-cost devices. MIPI SPMI Slave IIP is proven in FPGA environment.The host interface of the MIPI SPMI can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

MIPI SPMI Slave IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports 2.0 and 1.0 MIPI SPMI Specification
  • Full MIPI SPMI Slave functionality
  • Supports following frames
    • Command Frame
    • Data/Address Frame
    • No Response Frame
  • Supports ACK/NACK as per 2.0 specs
  • Support for slave requests through Alert(A) / Slave Request(SR) bit.
  • Support for slave request hold.
  • Glitch suppression (optional).
  • Supports extended register read/writes
  • Supports wakeup command
  • Supports Authentication Command Sequence
  • Device Descriptor Block command Sequences
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The MIPI SPMI Slave interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
