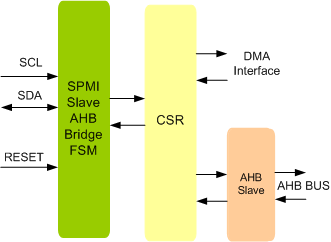

MIPI SPMI Slave DMA IIP

MIPI SPMI Slave DMA interface provides full support for the two-wire MIPI SPMI synchronous serial interface, compatible with SPMI specification. Through its SPMI compatibility, it provides a simple interface to a wide range of low-cost devices. MIPI SPMI Slave DMA IIP is proven in FPGA environment.The host interface of the MIPI SPMI can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

MIPI SPMI Slave DMA IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports 2.0 and 1.0 MIPI SPMI Specification
  • Full MIPI SPMI Slave functionality
  • Supports following frames
    • Command Frame
    • Data/Address Frame
    • No Response Frame
  • Supports ACK/NACK as per 2.0 specs
  • Support for slave requests through Alert(A) / Slave Request(SR) bit.
  • Support for slave request hold.
  • Glitch suppression (optional).
  • Supports extended register read/writes
  • Supports wakeup command
  • Supports Authentication Command Sequence
  • Device Descriptor Block command Sequences
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The MIPI SPMI Slave DMA interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
