MIPI STP Master IIP

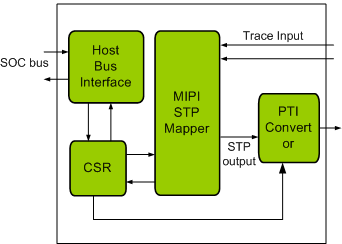

MIPI STP MASTER interface provides full support for the PTI which is a generic high performance parallel interface, support for the two-wire MIPI STP MASTER synchronous serial interface, compatible with MIPI STP specification. Through its MIPI STP MASTER compatibility, it provides a simple interface to a wide range of low-cost devices. MIPI STP MASTER IIP is proven in FPGA environment.It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses .

MIPI STP Master IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with MIPI STP Specification version 2.0 and 2.2.
  • Supports STP interface.
  • Supports ATB interface.
  • Supports Custom interface.
  • Supports a trace stream comprised of 4-bit frames.
  • Supports up to 16 independent data Channels per Master.
  • Supports basic trace data messages that can convey 4, 8, 16, 32, or 64 bit wide data.
  • Supports Time-stamped data packets using one of several time stamp formats including:
    • Gray code
    • Natural binary
    • Natural binary delta
    • Export buffer depth (legacy STPv1 timestamp that requires DTC support).
  • Supports Data packet markers to indicate packet usage by higher-level protocols.
  • Supports Flag packets for marking points of interest (for higher-level protocols) in the stream.
  • Supports Packets for aligning time stamps from different clock domains.
  • Supports Packets for indicating to the DTC the position of a trigger event, which is typically used to control actions in the DTC.
  • Supports Packets for cross-synchronization events across multiple STP sources.
  • Supports for user-defined data packets.
  • Facilities for synchronizing the trace stream on bit and message boundaries.
  • Fully synthesizable.
  • Static synchronous design.
  • Positive edge clocking and no internal tri-states.
  • Scan test ready.
  • Simple interface allows easy connection to microprocessor/microcontroller devices.
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The MIPI STP Master interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases.
    • Lint, CDC, Synthesis and Simulation Scripts with waiver files.
    • IP-XACT RDL generated address map.
    • Firmware code and Linux driver package.
    • Documentation contains User's Guide and Release notes.
