PMBUS Master IIP

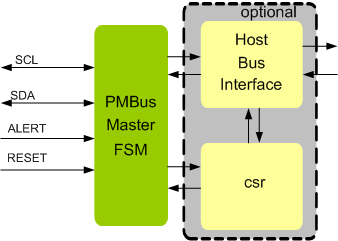

PMBUS Master interface provides full support for the two-wire PMBUS Master synchronous serial interface, compatible with version 1.3.1 Part II of PMBus Bus Specification. Through its PMBUS Master compatibility, it provides a simple interface to a wide range of low-cost devices. PMBUS Master IIP is proven in FPGA environment. The host interface of the PMBUS Master can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

PMBUS Master IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with version 1.3.1 Part II of PMBus Bus Specification
  • Supports HCI and Non HCI Interface
  • Full PMBus Master Functionality
  • Supports all the PMBus commands as per Specification
    • Send byte command
    • Write byte command
    • Write word command
    • Read byte command
    • Read word command
    • Block write command
    • Block read command
    • Block write and read process call command
  • Supports Extended command protocol
  • Supports Zone write and Zone read
  • Supports General call address
  • Supports Sending command to a group
  • Supports PMBus device fault management
  • Supports Packet Error checking
  • Supports alert handling
  • Supports Master arbitration and Clock synchronization
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The PMBUS Master interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
