SDIO Device Controller IIP

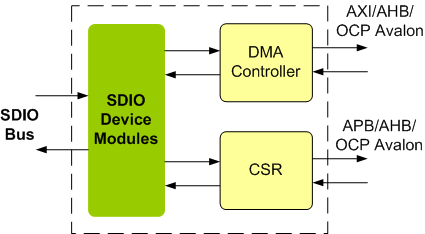

SDIO DEVICE interface provides full support for the SDIO DEVICE synchronous serial interface, compatible with SD specification part E1 SDIO 4.10. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. SDIO DEVICE IIP is proven in FPGA environment. The host interface of the SDIO can be simple interface or can be AMBA APB, AMBA AHB, AMBA AXI, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

SDIO Device Controller IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with Part E1 SD Specification version 4.10 and earlier versions
  • Supports all commands/response types
  • Supports 1-bit, 4-bit ,8 bit SD bus mode and SPI Bus mode
  • Supports CRC7 checking/generation for command/response
  • Supports CRC16 checking/generation for data transfer
  • Supports default and high speed modes
  • Supports SDR12, SDR25 ,DDR50, SDR 50 and SDR104 modes
  • Supports single byte, single block and multiple block transfer operations
  • Supports direct commands during data transfer
  • Supports multiple IO functions and one memory
  • Supports Asynchronous Interrupt to Host Controller
  • Supports Suspend and Resume operation
  • Supports Read Wait control operation
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The SDIO DEVICE Controller is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
