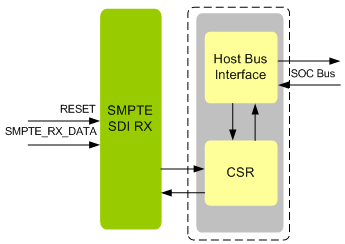

SMPTE SDI Receiver IIP

SMPTE SDI Receiver is full-featured, easy-to-use, synthesizable design,compatible with SMPTE ST 425 specification. Through its SMPTE SDI Receiver compatibility, it provides a simple interface to a wide range of low-cost devices. SMPTE SDI Receiver IIP is proven in FPGA environment.The host interface of the SMPTE SDI Receiver can be simple interface or can be AMBA APB, AMBA AHB, AMBA AXI, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

SMPTE SDI Receiver IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with standard protocol of SMPTE SDI 2.2A
  • Full SMPTE SDI Receiver device functionality
  • Supports 12 Gb/s Signal/Data Serial Interface as per SMPTE ST 2082-1:2015
  • Supports 6 Gb/s Signal/Data Serial Interface as per SMPTE ST 2081-1-2015
  • Supports Source Image Format and Ancillary Data Mapping for the 3 Gb/s Serial Interface as per SMPTE ST 425-1:2011
  • Supports 1.5 Gb/s Signal/Data Serial Interface as per SMPTE ST 292-1:2011
  • Supports Dual Link 1.5 Gb/s Digital Interface for 1920 x 1080 and 2048 x 1080 Picture Formats as per SMPTE ST 372:2011
  • Supports 1280 x 720 Progressive Image Sample Structure Analog and Digital Representation and Analog Interface as per SMPTE 296M-2001
  • Supports 1920 x 1080 Image Sample Structure, Digital Representation and Digital Timing Reference Sequences for Multiple Picture Rates as per SMPTE 274M-2008
  • Supports D-Cinema Distribution Master - Image Pixel Structure Level 3 - Serial Digital Interface Signal Formatting as per SMPTE 428-9-2008
  • Supports 2048 x 1080 Digital Cinematography Production Image FS/709 Formatting for Serial Digital Interface as per SMPTE ST 2048-2:2011
  • Supports 2048 x 1080 and 4096 x 2160 Digital Cinematography Production Image Formats FS/709 as per SMPTE ST 2048-1:2011
  • Supports Ultra High Definition Television - Image Parameter Values for Program Production as per SMPTE ST 2036-1:2014
  • Supports Ancillary Data Packet and Space Formatting as per SMPTE ST 291:2010
  • Supports Dual standard support for 270-Mbps and 1.5-Gbps SDI
  • Supports 10-bit/20-bit/40-bit parallel interfaces
  • Supports Serialization and de-serialization
  • Supports NRZI channel encoding
  • Supports below video format mapping structures:
    • 4:4:4 (X'Y'Z')/12-bit
    • 4:4:4 (R'G'B')/10-bit
    • 4:4:4 (R'G'B')/12-bit
    • 4:4:4 (Y'C'BC'R)/10-bit
    • 4:2:2 (Y'C'BC'R)/10-bit
    • 4:2:0 (Y'C'BC'R)/10-bit
    • 4:4:4 (Y'C'BC'R)/12-bit
    • 4:2:2 (Y'C'BC'R)/12-bit
    • 4:2:0 (Y'C'BC'R)/12-bit
    • 4:4:4:4 (R'G'B'+A)/10-bit
    • 4:4:4:4 (Y'C'BC'R+A)/10-bit
  • Supports up to Quad-link channel interface
  • Supports 16-bit/20-bit/24-bit Digital Audio data
  • Supports 4 to 32 Audio channels
  • Supports 24-Bit Digital Audio Format for SMPTE 292 Bit-Serial Interface as per SMPTE ST 299-1:2009
  • Supports Extension of the 24-Bit Digital Audio Format to 32 Channels for 3 Gb/s Bit-Serial Interfaces as per SMPTE ST 299-2:2010
  • Supports Audio extended data packets
  • Supports for Scrambler
  • Supports insertion of scrambler errors
  • Supports error correction code (ECC)
  • Detects and reports the following errors:
    • Invalid EAV code
    • Invalid SAV code
    • Invalid CRC error
    • Invalid LN error
    • Invalid parity error
    • Invalid NRZI encoding error
    • Invalid 10bit code
    • ECC errors
    • Invalid ADF errors
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The SMPTE SDI Receiver interface is available in Source and netlist products.
    • The Source product is delivered in verilog.If needed, VHDL and SystemC can also be provided
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and linux driver package
    • Documentation contains User's Guide and Release notes.
