SPI Slave To AHB Bridge IIP

SPI Slave To AHB Bridge interface provides full support for the two-wire SPI synchronous serial interface, compatible with SPI version Block Guide 4.01 standard. Through its SPI compatibility, it provides a simple interface to a wide range of low-cost devices. SPI Slave To AHB Bridge IIP is proven in FPGA environment.The host interface of the SPI can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

SPI Slave To AHB Bridge IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation

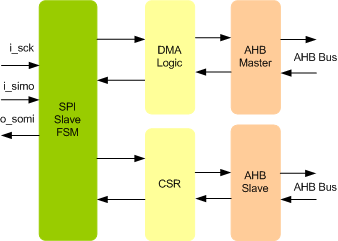

  • Compliant with the SPI Block Guide 4.01 standard.
  • Full SPI Slave functionality.
  • Converts SPI Transactions into AHB write or read instructions
  • Allows external devices to access the internal AHB Bus
  • Useful for updating device software from and external device
  • Useful for reading internal memory mapped registers and memory
  • Supports Mailbox Read/Write functionality
  • Supports AHB Master Read/ Write capability
  • Supports AHB Slave
  • Supports monitoring of erroneous AHB transfers and reports error to the system
  • Supports Single SPI Data line
  • Supports flexible transfer format to work with slower interfaces
  • Supports address width of 8,16,24 and 32 bits
  • Supports following frames for SPI
    • Sleep Frame
    • Wakeup Frame
    • Write Frame
    • Read Frame
    • Extended Register Write Frame
    • Extended Register Read Frame
    • Extended Register Write Long Frame
    • Extended Register Read Long Frame
    • Extended Register Write Long Long Frame
    • Extended Register Read Long Long Frame
  • Support single and burst transfer mode for SPI
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The SPI Slave To AHB Bridge interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
