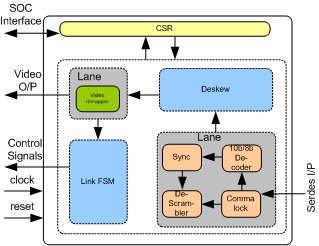

V-By-One Receiver IIP

VBYONE Receiver core is compliant with standard VByOne specification as 1.2/1.3/1.4. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. VBYONE Receiver IIP is proven in FPGA environment.The host interface of the VBYONE can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.

V-By-One Receiver IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with VByOne specification 1.2/1.3/1.4.
  • Full VBYONE Receive functionality.
  • Supports 1 to 8 lanes. If needed, we can support custom lane configuration.
  • Supports all byte lengths.
  • Supports all color depths.
  • Supports all resolutions.
  • Supports lane deskew.
  • Supports 10b/8b Decoding.
  • Supports 10 bit, 20 bit ,40 bit parallel interface.
  • Supports descrambler as in VByone HS specification.
  • Supports 1 lane data with 1 section allocation in frame.
  • Supports 2 lane data with 1 section allocation in frame.
  • Supports 2 lane data with 2 section allocation in frame.
  • Supports 4 lane data with 1 section allocation in frame.
  • Supports 4 lane data with 2 section allocation in frame.
  • Supports 4 lane data with 4 section allocation in frame.
  • Supports 8 lane data with 1 section allocation in frame.
  • Supports 8 lane data with 2 section allocation in frame.
  • Supports 8 lane data with 4 section allocation in frame.
  • Supports 8 lane data with 8 section allocation in frame.
  • Supports detections and reports various errors.
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The VBYONE Receiver interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
