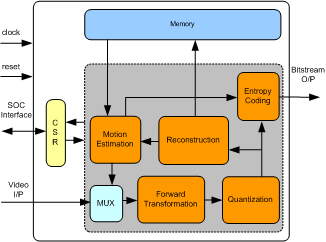

VC1 ENCODER IIP

VC1 Encoder core is compliant with VC-1 standard specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices.VC1 Encoder is proven in FPGA environment. The host interface of the VC1 can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.

VC1 ENCODER IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports VC-1 standard specification.
  • Supports full VC-1 encoder functionality.
  • Supports video resolution up to 1920x1080@60fps.
  • Supports Chroma type 4:4:4, 4:2:2 and 4:2:0.
  • Supports variable size transform.
  • Supports baseline intra frame compression.
  • Supports sequence level metadata.
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The VC1 Encoder interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
