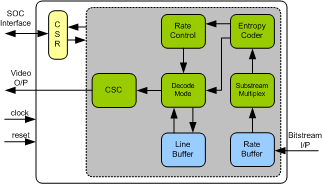

VDC-M Decoder IIP

VDC-M DECODER core is compliant with standard VESA Display Stream Compression version 1.1/1.2. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. VDC-M DECODER IIP is proven in FPGA environment. The host interface of the VDC-M DECODER can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.

VDC-M Decoder IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Supports VDC-M specification version 1.1 and 1.2.
  • Supports full VDC-M decoder functionality.
  • Supports following maximum bitrates (BPPmax), as follows:
    • 3 × bits_per_component,for 4:4:4
    • 2 × bits_per_component,for 4:2:2
    • 1.5 × bits_per_component,for 4:2:0
  • Supports any integer slice per line values
  • Supports any combination of bits_per_pixel and slice_width
  • Supports CSC(Color-space-conversion)
  • Supports the following Picture Hierarchy,
    • Block Level
    • Slice Level
    • Picture Level
  • Supports the following Per-mode Decoding Process ,
    • Transform Mode
    • BP Mode
    • MPP Mode
    • Fallback Modes
    • MPPF Mode
    • BP-SKIP Mode
  • Supports rate control (RC) algorithm in the determination of QP
  • Supports substream de-multiplexing
  • Supports Syntax parsing for Transform, BP, MPP, MPPF, and BP-SKIP modes
  • Supports following Hadamard transform applied in the YCoCg color space
    • 8-point Forward Hadamard Transform
    • 4-point Forward Hadamard Transform
  • Supports PPS decoding.
    • Single site license option is provided to companies designing in a single site.
    • Multi sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The VDC-M DECODER interface is available in Source and netlist products.
    • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
