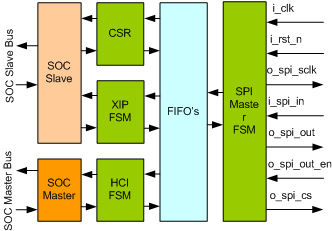

XSPI Master IIP

XSPI Master interface provides full support for the two-wire XSPI Master synchronous serial interface, compatible with XSPI specification. Through its XSPI Master compatibility, it provides a simple interface to a wide range of low-cost devices. XSPI Master IIP is proven in FPGA environment.The host interface of the XSPI Master can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

XSPI Master IIP IIP is supported natively in Verilog and VHDL

Note: Only mails from offical mail ID will be processed

Request Datasheet Request Evaluation
  • Compliant with XSPI protocol of JEDEC standard version 1.0 specification
  • Support single master and multiple slaves per interface port
  • Support source synchronous clocking
  • Support Deep power down enter and exit commands
  • Support Eight IO ports in standard. Possible to increase IO port based on system performance requirements
  • Optional support for Data strobe for write masking
  • Support 1-bit wide SDR transfer
  • Support profile 1.0 Commands to manage a non-volatile memory device
  • Support profile 2.0 Commands to support read or write data for any time of slave devices
  • Speed grades with data transfer rates up to
    • 400MT/s (200 MHz Clock)
    • 333MT/s (167 MHz Clock)
    • 266MT/s (133 MHz Clock)
    • 200MT/s (100 MHz Clock)
  • To support protocol modes:
    • 1S – WR –WR
    • 4D – 4D – 4D
    • 8D – 8D – 8D
  • Transaction phases – Command, Address, Latency, Data
  • Transfer bit width options in each phase W = 1 or 8
  • Data rate options in each phases S for SDR or D for DDR
  • Has inbuilt Host controller Interface (DMA Engine)
  • Supports legacy SPI Devices on same device
  • Fully synthesizable.
  • Static synchronous design.
  • Positive edge clocking and no internal tri-states.
  • Scan test ready.
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices.
    • Single Site license option is provided to companies designing in a single site.
    • Multi Sites license option is provided to companies designing in multiple sites.
    • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
    • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
    • The XSPI Master interface is available in Source and netlist products.
    • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
    • Easy to use Verilog Test Environment with Verilog Testcases
    • Lint, CDC, Synthesis, Simulation Scripts with waiver files
    • IP-XACT RDL generated address map
    • Firmware code and Linux driver package
    • Documentation contains User's Guide and Release notes.
